Aluminium Pivot Doors: Complete Buyer’s Guide

Aluminium pivot doors turn on a vertical axis instead of swinging on side hinges. That single mechanical difference has changed what architects can do with an entrance. Because the leaf rotates on a spindle rather than hanging on jamb hinges, size is no longer limited by the frame. An aluminium pivot door can span 1.5 metres or more in width. Even so, it still glides open with one hand. Over the past decade, aluminium pivot doors have moved far beyond high-end villas. They now appear in hotels, showrooms, and office lobbies across Europe, the Middle East, and North America.

Buyers, however, run into the same questions on every project. How large can the leaf go? Which pivot hinge rating is actually safe? How do you stop a 2.8-metre-tall aluminium leaf from twisting in the wind? And what should the thermal specification look like on paper? This article explains how aluminium pivot doors work and how to buy them well. The answers come from the factory floor perspective. NA-VIEW has produced extruded aluminium door and window systems for 11 years. Our 6 extrusion lines ship more than 500 profiles per day to over 30 countries. Every figure below therefore comes from production practice rather than a brochure reprint.

What Is an Aluminium Pivot Door?

Aluminium pivot doors hang on a spindle system instead of butt hinges. A bottom pivot sits in the floor, and a top pivot fixes to the header above. Because the load travels through the top and bottom of the leaf, the jamb does not carry the weight. Consequently, designers can specify leaves that are wider, taller, and heavier than any hinged door could support.

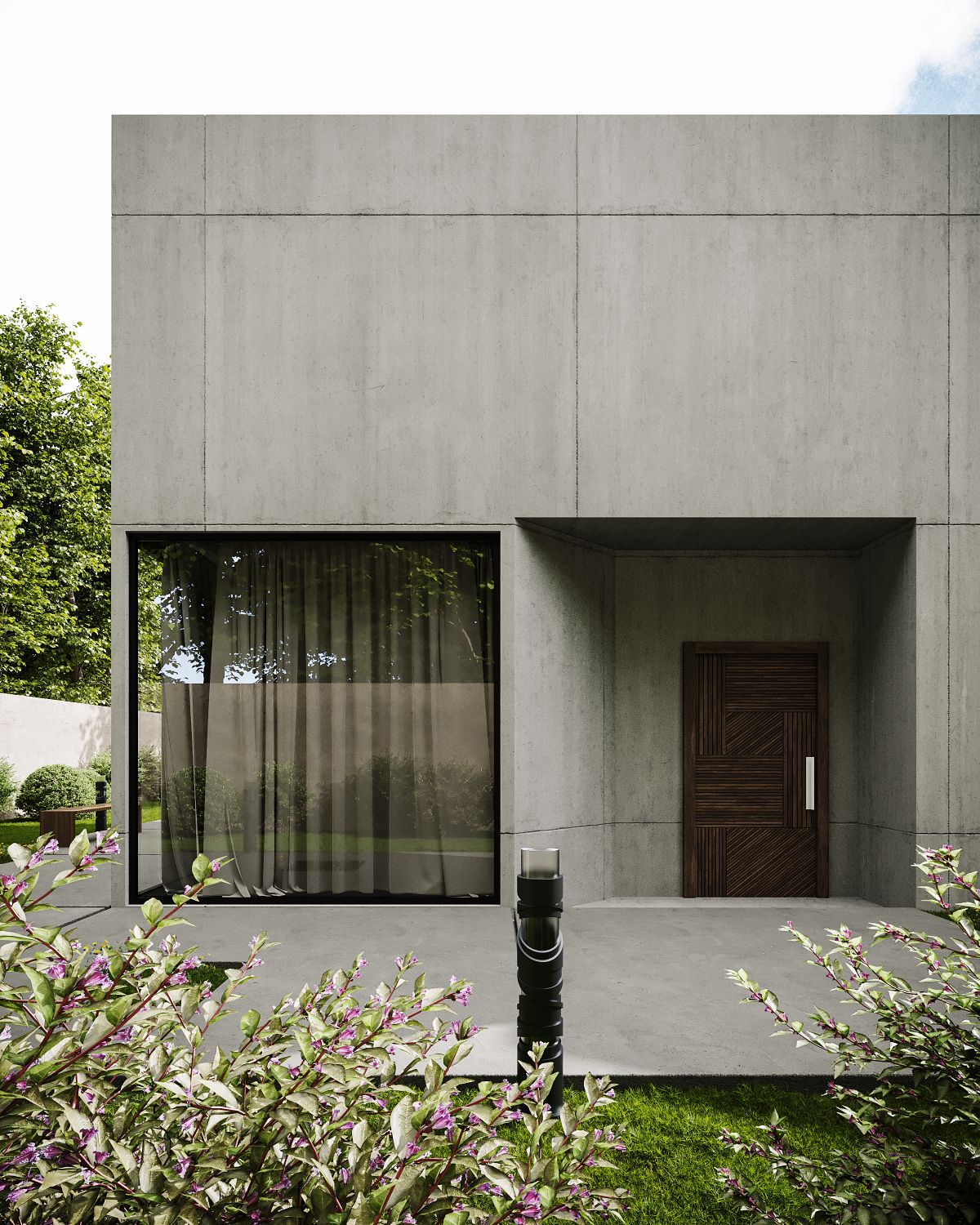

The visual result is a clean, unbroken facade plane. There is no visible stile hierarchy and no rebated jamb line. Often there is no frame at all on the leading edge. Moreover, the opening motion reads differently: the door rotates around an offset axis, so the leaf sweeps out of the doorway while its leading edge travels like the hand of a clock.

Two axis positions dominate real projects. With a centre pivot, the axis sits near the middle of the leaf. Half the door then opens inward and half opens outward. Balanced rotation means even a heavy leaf needs little effort, and the geometry suits tight lobbies. With an offset pivot, the axis sits 60–120 mm from the leading edge. Most of the leaf then sits on one side. That gives a wider clear opening and the dramatic “monolithic panel” look that aluminium pivot doors are famous for. Offset systems need stronger hinges because the load stays concentrated on one edge.

For specifiers, the choice is not purely aesthetic. A centre-pivot 1.2 m leaf gives a 0.6 m effective opening. Meanwhile, an offset-pivot leaf of the same width gives roughly 1.0 m of clear passage. Always check the clear-opening figure, not the leaf width, when you review entrance drawings for accessibility or fire-egress compliance. In practice, aluminium pivot doors range from 1.0 m residential entries to 3.2 m statement leaves in hotel lobbies.

How a Pivot Hinge Works Under Load

The pivot hinge is the heart of all aluminium pivot doors. A typical set contains three parts. The floor-mounted bottom spindle carries rotation and most of the gravity load. A top pivot arm then locates the leaf laterally. Finally, a height-adjustment mechanism lets installers level the leaf after the floor screed is poured. Quality sets are machined from stainless or galvanised steel and sealed against dust and water.

Load Rating and Hardware Checks

Load rating matters more than any other hardware specification. Residential sets usually handle 100–150 kg per leaf. Commercial-grade sets reach 250–300 kg, and some premium systems go higher. Underspecified hinges do not fail dramatically. Instead, they sag a few millimetres each season until the leaf drags on the seal or the latch stops aligning. We have seen the consequences on replacement jobs. One distributor saved $40 on a hinge set, then spent two days re-shimming a 250 kg leaf. The maths never favours that trade.

Three checks keep the hardware honest. First, compare the declared load rating against the actual leaf weight, including glass. Keep a safety margin of at least 25%. Second, ask whether the bottom spindle uses sealed bearings, because open bearings collect grit from entrance flooring and wear quickly. Third, confirm the adjustment range. A quality floor pivot should allow ±5 mm of height adjustment plus a few degrees of vertical alignment. No slab on site is perfect.

Cycling endurance separates good hardware from average hardware. European test methods exercise pivot sets through tens of thousands of open-close cycles. For a commercial entrance, a set rated for 200,000 cycles is a sensible minimum. Meanwhile, the durability classes in EN 14351-1 documentation give buyers a neutral benchmark, since every conforming manufacturer declares against the same scale. On large aluminium pivot doors, we also pair the floor spindle with a reinforced top bearing as standard.

Aluminium Pivot Doors vs Hinged and Sliding Doors

Before committing to a pivot system, compare it honestly against the alternatives. The table below summarises where each door type wins, using the practical limits we machine to on our own lines.

Criterion	Aluminium Pivot Doors	Side-Hinged Doors	Sliding Doors
Max leaf width (typical)	1,600 mm	1,100 mm	3,000 mm per panel
Max leaf height (typical)	3,600 mm	2,700 mm	3,000 mm
Max leaf weight	250–300 kg	80–100 kg	200–400 kg
Clear opening per system width	~70% (offset pivot)	~95%	~90%
Sealing against wind and rain	Good, with drop seal	Excellent	Good on quality rollers
Visual statement	Highest — monolithic leaf	Conventional	Wide, horizontal
Floor preparation	Required (recess or top-mount)	None	Track required
Relative cost per m²	Highest	Lowest	Medium

Interpretation is straightforward. If the entrance is the architectural centrepiece — a villa facade, a hotel lobby, a showroom — aluminium pivot doors earn their premium. Yet for a service door or a utility exit, a standard hinged leaf delivers the same security for a third of the price. Sliding formats win when the opening exceeds 3 metres and the wall plane can host stacked panels; our aluminium sliding doors guide covers that geometry in detail. For wide openings that must fully clear, bifold systems remain the practical answer, as explained in the aluminium bifold doors guide. Overall, aluminium pivot doors justify themselves where the entrance carries brand or design value. Elsewhere, the cheaper formats do the job with less fuss.

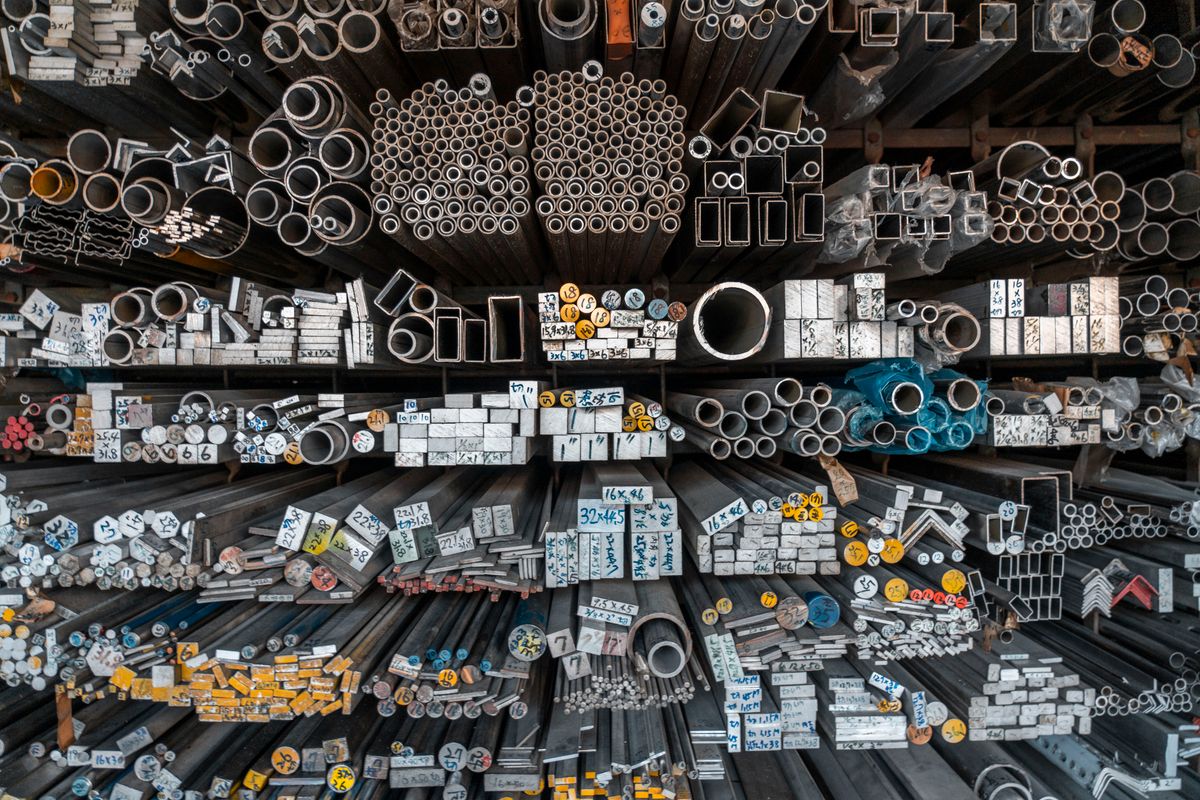

Alloy and Profile Selection: What the Frame Is Made Of

The leaf of a large pivot door acts as a cantilevered beam standing on one point. Aluminium pivot doors concentrate all their weight at two points, so alloy choice and wall thickness must work together. We extrude architectural profiles from 6063-T5 as the default and move to 6061-T6 reinforcement inserts when leaf width or wind load increases. The full reasoning is set out in our 6063 vs 6061 aluminium alloy comparison, yet the short version belongs here too.

Parameter	6063-T5 (Standard Frame)	6061-T6 (Reinforcement)
Tensile strength (typical)	≥ 160 MPa	≥ 260 MPa
Yield strength (typical)	≥ 110 MPa	≥ 240 MPa
Extrudability / shape complexity	Excellent — fine detail, thin walls	Fair — simpler shapes
Surface finish after anodising	Excellent	Good
Typical role in pivot door	Leaf stiles, rails, sub-frame	Inserts inside leading stile, header beam
Wall thickness we machine to	1.8–2.5 mm	3.0–6.0 mm insert

Dimensional accuracy is the quiet variable behind smooth-running aluminium pivot doors. A leaf rotating on a single axis amplifies every twist in the frame. Therefore, profile straightness and twist tolerances must stay tight through the full 6-metre extrusion length. Our process works to EN 755-9 and EN 12020-2 tolerances, and each batch ships with an EN 10204 Type 3.1 material certificate. When you audit a supplier, ask for the tolerance class in writing. A generic “high precision” claim means nothing on the saw.

Thermal Break Design and Energy Performance

A 1.5 m wide, 2.8 m tall aluminium leaf is a large thermal highway if it is built from a single extrusion. Unbroken aluminium conducts roughly 160 W/mK, which is why non-thermal-broken doors frost on the inside in winter and sweat condensation in humid climates. The fix is a polyamide barrier: two aluminium sections joined by glass-fibre-reinforced nylon strips 14–34 mm wide, a construction standardised in EN 14024. That is how serious aluminium pivot doors stay comfortable to the touch all year.

The numbers justify the engineering effort. On our thermal-broken pivot series, the frame U-value (Uf) drops from about 5.8 W/m²K to 1.8–3.5 W/m²K, depending on strip width and chamber count. Paired with a double-glazed insulated unit, complete aluminium pivot doors reach U-values around 1.6–2.2 W/m²K. Triple glazing pushes below 1.4 W/m²K. For projects targeting passive-house-level envelopes, we pair the door with the thermal platform described in our thermal break aluminium windows guide, so the entire opening shares one insulation logic.

U-Value Benchmarks for Aluminium Pivot Doors

Build Configuration	Frame Uf (W/m²K)	Typical Whole-Door Ud (W/m²K)	Recommended Climate
Non-thermal-broken, single glazing	~5.8	4.5–5.5	Mild, unheated porches
Thermal break 14 mm, double glazing 5+16A+5	2.8–3.5	1.8–2.2	Temperate coastal regions
Thermal break 24–34 mm, double glazing, low-E + argon	1.8–2.4	1.4–1.8	Cool temperate, energy codes
Thermal break 34 mm, triple glazing	1.4–1.8	≤ 1.4	Cold climates, passive targets

Sealing completes the thermal story. Because the leading edge of a pivot leaf is free-standing, the weather line relies on compression seals and a spring-loaded or motorised drop seal at the threshold. Well-executed systems reach Class 4 air permeability under EN 12207 and Class 7A water tightness under EN 12208, plus respectable wind-load classes under EN 12210. Ask the supplier for the actual test report, not just the class numbers. Also check that the tested specimen matches your leaf size, because a door tested at 1.0 m wide tells you little about a 1.6 m leaf. Serious aluminium pivot doors always come with full test documentation.

Sizing and Structural Requirements on Site

Large aluminium pivot doors impose loads that ordinary door openings were never designed to carry. The bottom spindle concentrates 250 kg or more onto a single point in the floor slab. Meanwhile, the top pivot pulls on the lintel every time the door operates. Structural preparation therefore decides long-term performance more than any catalogue option.

Three site rules prevent most failures. First, the floor substrate under the bottom pivot should be structural concrete at least 100 mm thick; a floating screed will settle and drop the leading edge. Second, the header steel must resist both vertical load and the horizontal pull of the top pivot arm. A 300 kg leaf operating 30 times a day generates real fatigue over years. Third, leave adjustment slack. Our installation drawings reserve 10–15 mm of shimming space around the sub-frame, because site tolerances on poured concrete rarely beat ±5 mm even with careful formwork.

Wind load deserves its own line in the specification. A tall entrance door on an exposed facade faces the same pressure coefficients as curtain walling. So we size reinforcement to the site wind speed using the project’s governing standard — EN 1991-1-4 in Europe, ASCE 7 in North America, GB 50009 in China. Extrusion tolerance discipline, covered in our aluminium extrusion tolerances guide, is what allows a 3.6-metre leaf to close within a 1.5 mm gap along its full height. In short, aluminium pivot doors need the same structural respect as a small facade opening.

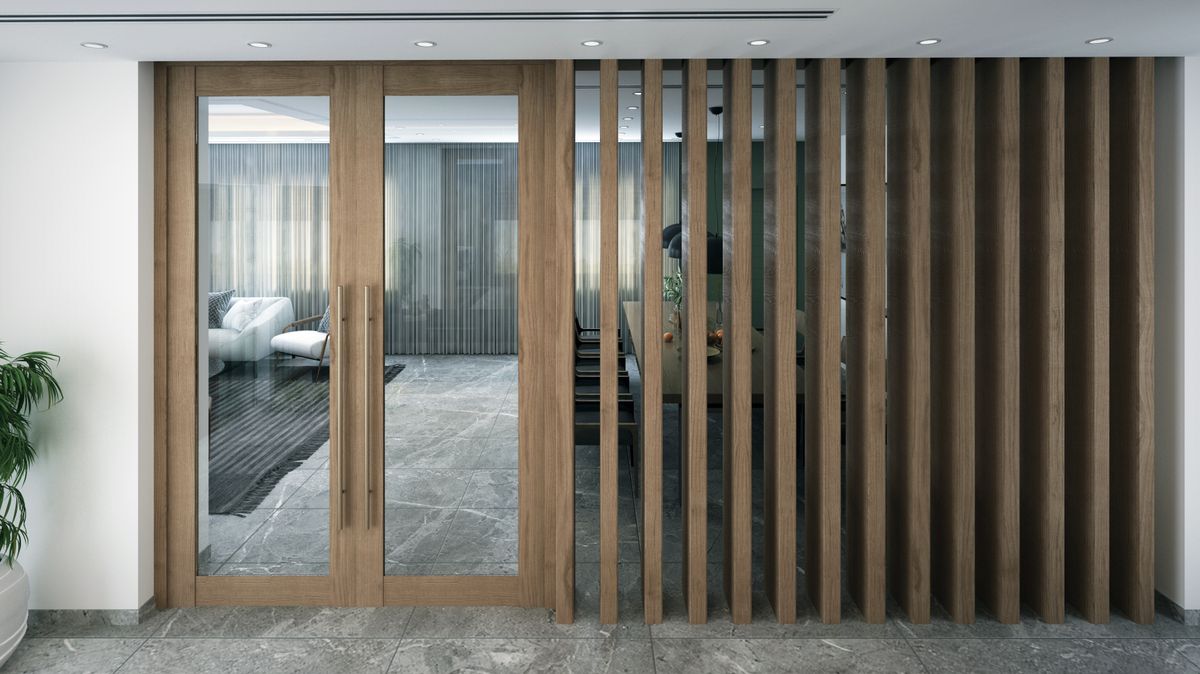

Glazing Options for Pivot Door Leaves

Glazing usually covers 60–90% of a pivot leaf, so glass choice drives both the look and the energy numbers. Double insulated units with low-E coating and argon fill are the volume answer. They hit the Ud values in the table above at a sensible cost. Triple glazing suits cold climates, yet it adds roughly 10–12 kg per square metre, which flows directly into the hinge load calculation. In volume projects, aluminium pivot doors ship with double glazed units as standard.

Laminated safety glass is our default recommendation for entrance doors. Beyond the obvious break-in resistance, a laminated inner pane holds fragments if the glass ever breaks near a busy entrance. Meanwhile, striking design options exist for larger budgets. Bronze and grey body-tinted glass turns the leaf into a solid-looking monolith from the street while still transmitting daylight. Integral blinds sit between the panes and stay dust-free for life. All units must carry EN 1279 conformity. In addition, any glass larger than a standard stock sheet adds lead time, because 3.3-metre glass is a special order in most markets.

Surface Treatment and Finish Durability

Entrance doors take more abuse than any other fenestration surface. Hand contact, bag scuffs, UV, and road splash all land on the same panels. Finish choice is therefore a service-life decision, not a colour sample exercise. Powder coating to 60–80 μm remains the workhorse for most projects, with Qualicoat Class 1 polyester giving 10+ years of colour stability in temperate exposure. Marine or industrial atmospheres justify PVDF at 25–40 μm, which resists chalking far longer under aggressive UV. Anodising to AA15 or AA25 suits minimalist schemes where a metallic sheen is wanted, and Qualanod-certified baths keep colour batch-to-batch consistent.

Wood-effect sublimation finishes deserve a caution note. They photograph beautifully on aluminium pivot doors, and many villa projects specify them. However, quality varies widely between coating shops. Ask for a fade warranty in writing. A reputable powder line will back a wood-effect finish for 10 years outdoors, while a bargain booth may start fading at year three. Aluminium pivot doors in coastal or industrial zones justify the PVDF upgrade for the same reason. Whatever the finish, the extrusion should receive a chromate-free conversion pre-treatment before coating. Skipping that step is the most common root cause we find when investigating warranty claims on imported doors.

Standards and Certifications to Demand

Compliance paperwork is where OEM buyers separate serious factories from trading offices. Conforming aluminium pivot doors for the European market must carry an EN 14351-1 declaration of performance. That declaration covers air permeability (EN 12207), water tightness (EN 12208), wind resistance (EN 12210), and, where claimed, thermal transmittance per EN ISO 10077-2. Chinese-market projects reference GB/T 8478-2020, which grades air, water, and wind performance in a parallel system and is the benchmark we machine and test to in-house. North American projects typically ask for AAMA 101 or equivalent performance grades, with finish durability declared under AAMA 2604 or AAMA 2605.

Factory-level certification matters just as much. ISO 9001 quality management confirms the plant runs documented process control rather than heroics. Material traceability through EN 10204 Type 3.1 certificates ties every extrusion batch to its chemistry and temper. The full catalogue of these harmonised documents is publicly browsable in the CEN-CENELEC standards database, so buyers can verify every clause cited in a quotation. Our own plant operates under ISO 9001 with 100% in-line profile inspection, and we release test reports for each performance figure quoted on a project. In short, certified aluminium pivot doors come with paper you can verify, not promises.

What Drives the Price of Aluminium Pivot Doors

Aluminium pivot doors price 30–80% above an equivalent hinged door, and the gap is easy to explain once you decompose it. Hardware is the largest single factor, because a certified 300 kg pivot set costs several times more than a quality butt-hinge pack. Leaf size is second. Past 1.4 m width, glass must be ordered oversize, reinforcement inserts thicken, and handling equipment changes. Thermal specification adds a step change rather than a slope, since the thermal-broken platform, wider polyamide strips, and triple glazing each carry real material cost. Finish is fourth, with PVDF and wood-effect running 15–30% over standard polyester. Finally, volume moves the needle. A single prototype piece prices far above a 20-unit villa phase, because setup, testing, and tooling amortise across the batch.

Practical cost control starts at the design table. Keeping the leaf within 1.2 × 2.7 m trims meaningful money. Specifying double rather than triple glazing helps where the climate allows. Standardising one finish colour across the project cuts coating batch costs without touching the visual impact. Conversely, squeezing the hinge rating to save cost is the one economy we advise against every single time.

Buyer Checklist Before You Order

Aluminium pivot doors reward careful specification. Run through this list before you sign anything.

• Leaf weight with glass: calculate it, then select a pivot set rated at least 25% above that figure.
• Axis position: confirm centre or offset, and recheck the true clear opening against accessibility and egress rules.
• Structural readiness: 100 mm+ structural concrete under the bottom pivot, plus engineered header support above.
• Thermal class: declare your target Ud and ask for the EN ISO 10077-2 calculation for your exact configuration.
• Performance test reports: EN 12207/12208/12210 results on a specimen close to your leaf size.
• Material certificates: EN 10204 Type 3.1 for every extrusion batch, plus GB/T 8478-2020 or EN 14351-1 conformity as the market requires.
• Finish warranty: written coverage of 10+ years for powder or wood-effect, with AAMA 2604/2605 class where specified.
• Threshold detail: drop-seal type, drainage path, and whether the floor needs a recessed pocket at casting stage.

Send this list to any prospective supplier. The response speed and the specificity of the answers tell you more about the factory than any brochure.

Frequently Asked Questions

How wide can an aluminium pivot door be?

Standard systems take leaves up to 1.6 m wide and 3.6 m tall, with leaf weight up to about 300 kg. Beyond those limits, hardware choice narrows and structural reinforcement grows quickly. Aluminium pivot doors above 1.6 m width fall into our engineered range and are quoted case by case. NA-VIEW manufactures to the dimensions your drawings specify, and we confirm feasibility with a load calculation before quoting.

Are aluminium pivot doors energy efficient?

A thermal-broken leaf with double low-E glazing reaches a whole-door Ud of 1.8–2.2 W/m²K. Triple glazing brings it below 1.4 W/m²K. The polyamide break must run through both the frame and the leaf profiles, because a thermal frame with a solid leaf section ruins the numbers.

Do pivot doors seal well against wind and rain?

Quality systems reach Class 4 air permeability under EN 12207 and Class 7A water tightness under EN 12208. Compression seals plus a drop seal at the threshold do the work. Site workmanship matters equally, since the floor detail around the bottom pivot decides whether water drains away or ponds.

What is the minimum order quantity?

Our MOQ starts at 20 m² per order for standard configurations, which suits a villa project or a small commercial fit-out. Prototype single pieces are accepted for evaluation, priced as samples.

Which payment terms do you accept?

We work with T/T, L/C at sight, and PayPal for sample and small orders. Standard terms are 30% deposit with balance before shipment. Established partners negotiate progress terms on volume contracts.

How are pivot doors packed and shipped?

Each leaf ships in an EPE-foam-lined, steel-reinforced wooden crate, with glazing protected on both faces. We quote FOB, CIF, and DDP terms. DDP is popular with first-time importers because duties and final-mile delivery are handled on our side.

What is the lead time?

Standard aluminium pivot doors ship in 25–35 days after drawing approval and deposit. Non-standard glass, special finishes, or oversized leaves add 7–15 days. Drawings are issued within 7 days of order, and free sample profiles ship within 3 days so you can verify finish and section before production starts.

Get a Quotation for Your Project

Send us your opening sizes, finish, and glazing target. NA-VIEW’s engineering team returns a load-checked quotation for your aluminium pivot doors within 24 hours, with free profile samples and a factory video call on request. Aluminium pivot doors from our lines ship worldwide under FOB, CIF, and DDP terms. Contact NA-VIEW today and put 11 years of extrusion expertise behind your next entrance.
