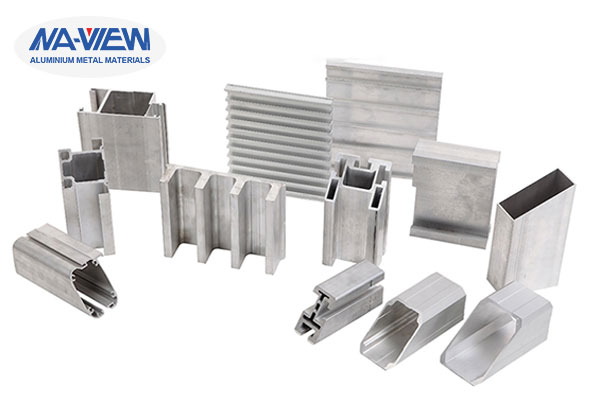

Industrial Aluminium Profile Product Design: From Concept to Production

By:Naview
Date:2022-02-15

Designing an industrial aluminium profile product — whether a machine frame, conveyor component, or custom enclosure — is a process that bridges mechanical engineering and manufacturing process knowledge. The best designs exploit extrusion’s unique ability to create complex cross-sections in a single operation, eliminating assembly steps that would be unavoidable with steel fabrication or plastic injection moulding. At NA-VIEW, our engineering team reviews over 200 new profile designs each year, and the principles below represent what we have learned about getting from concept to production efficiently.

Phase 1: Define the Functional Requirements

Before drawing a single line of the profile cross-section, document what the profile must do:

Load conditions: Static, dynamic, impact? What are the maximum forces in each direction?
Connection interfaces: How does this profile connect to adjacent components? Bolted? Welded? Snap-fit? T-slot clamped?
Environmental exposure: Indoor factory, outdoor, chemical, high-temperature, UV exposure?
Dimensional constraints: What is the available envelope? Are there weight limits?
Volume requirements: Is this a one-off prototype run (50 kg), a recurring production order (500 kg/month), or a high-volume continuous run (5,000+ kg/month)?
Surface requirements: Mill finish acceptable or does it need coating?

The volume question is particularly important — it determines die investment justification. A $1,500 die amortised over 500 kg of profiles adds $3.00/kg to the unit cost; the same die amortised over 10,000 kg adds just $0.15/kg.

Phase 2: Select the Alloy and Temper

Alloy selection for industrial profiles is driven by strength requirements and secondary processing needs:

If You Need…	Choose	Why
Standard framing strength + cost efficiency	6063-T5	160 MPa strength, excellent extrudability, lowest die cost
Higher strength without machining	6063-T6	210 MPa, same good surface as T5, slightly higher cost
Maximum strength + weldability	6061-T6	290 MPa, good machinability, weldable, higher die wear
Strength + complex geometry	6005A-T6	270 MPa, better extrudability than 6061 for complex shapes

For detailed alloy data, see our 6063 vs 6061 technical comparison.

Phase 3: Design the Profile Cross-Section

This is where the CAD work happens. The key principle: design for metal flow, not just for function. Every feature you add affects how aluminium flows through the die — and poor flow means poor profile quality.

Start with the External Envelope

Define the outer dimensions first. Check against the extrusion press’s circumscribing circle diameter (CCD) — NA-VIEW’s presses accommodate profiles up to 300 mm CCD. The profile must fit within the press container diameter; exceeding it means the profile cannot be extruded on that press.

Add Structural Features

Screw bosses, T-slot grooves, and reinforcing ribs are the functional core of most industrial profiles. Key guidelines:

Screw bosses: C-shaped channels for M4–M8 self-tapping screws. Minimum boss diameter: 1.5× screw diameter. Wall thickness around boss: minimum 1.5 mm.
T-slot grooves: Standard slot widths — 6 mm (20 series), 8 mm (30/40 series), 10 mm (45/60 series). Groove depth should be 1.2–1.5× slot width for proper T-nut engagement.
Reinforcing ribs: Add ribs where bending loads concentrate. A 2 mm rib adds 20% bending stiffness for a 2% weight increase — highly efficient.

Balance the Wall Thickness

Review the entire cross-section and identify the thickest and thinnest walls. If the ratio exceeds 2:1, redesign to either thicken the thin walls or thin the thick walls. Use hollows and cut-outs to remove unnecessary mass from thick sections — this improves both metal flow and material cost.

Validate Tolerances

Compare your tolerance requirements against EN 755-9 or ANSI H35.2 standards. For each critical dimension, ask: “Does this need standard tolerance (±0.3 mm per 50 mm) or precision tolerance (±0.15 mm)?” Precision tolerances are achievable at NA-VIEW but require additional quality control — specify them only where needed.

Phase 4: Die Design and Prototyping

Once the profile design is finalised, NA-VIEW’s die design team takes over:

Die flow simulation: Using extrusion simulation software, we model how the aluminium will flow through the proposed die geometry. Flow imbalances, dead zones, and potential weld line issues are identified and corrected before steel is cut.
Die fabrication (15–20 working days): H13 tool steel is machined, heat-treated, and nitrided. The die undergoes a trial extrusion to verify profile dimensions against the drawing.
Sample production (3 working days): Three profile samples are cut, inspected, and shipped for customer approval. Samples include a dimensional inspection report showing actual vs nominal dimensions for all critical features.

Phase 5: Production and Quality Control

Production at NA-VIEW follows a structured quality control process:

First-article inspection: The first profile off each production run is fully dimensionally inspected and compared to the approved sample.
In-process checks (every 2 hours): Dimensional spot checks on 3 critical dimensions, surface quality visual inspection, and hardness testing per batch.
Final inspection: 100% visual inspection for surface defects, straightness check (1.0 mm per 1,000 mm maximum), and cut length verification.
Mechanical testing per batch: Tensile test specimens are cut from each production batch and tested to verify alloy and temper compliance.

All quality records are traceable to the production batch and included in the shipment documentation.

Cost Drivers in Industrial Profile Design

Understanding what drives the price helps you make design decisions that reduce unit cost:

Profile weight (kg/m): The single largest cost component — aluminium is priced per kilogram. Every gram saved in the profile design saves money across the entire production volume.
Die complexity: Solid < semi-hollow < single hollow < multi-hollow. More complex dies cost more to manufacture and wear faster.
Extrusion speed: Profiles that extrude at 40 m/min cost less per metre than profiles that must run at 15 m/min due to thin walls or tight tolerances.
Secondary operations: Cutting, drilling, tapping, and machining add cost. Design the profile to integrate as many features as possible into the extrusion itself.
Surface treatment: Mill finish < anodising < powder coating < PVDF. Specify the minimum finish that meets your requirements.

Working with NA-VIEW

Send your profile concept to our engineering team — DXF, DWG, PDF, or even a dimensioned sketch. Within 7 working days, you will receive a feasibility assessment, die cost estimate, and production quotation. Three free samples ship within 3 working days of die completion. Full production lead time is 25–35 working days.

Payment: T/T, L/C at sight, PayPal. Shipping: FOB Shenzhen, CIF, DDP.

Frequently Asked Questions

What is the minimum order quantity for custom industrial profiles?

500 kg per die design for the first order. Subsequent orders have no minimum quantity — we keep your die in our tooling library permanently.

How long does a custom die last?

25–30 tonnes of aluminium throughput before re-nitriding. Well-maintained dies can exceed 50 tonnes. NA-VIEW stores customer dies in a climate-controlled tooling library at no charge.

Can I modify an existing die instead of making a new one?

Minor bearing adjustments are possible. Significant geometry changes require a new die. Our design review will advise whether your changes can be accommodated in the existing die or need new tooling.

What payment and shipping terms does NA-VIEW offer?

T/T (30% deposit, 70% against documents), L/C at sight, PayPal (under $2,000). FOB Shenzhen, CIF to port, DDP to door. Standard lead time: 25–35 working days.
