Double Hung Aluminium Window NAMJ6801

  • Frame Size: 68mm
  • Profile Thickness: 1.5mm
  • Hardware: Chinese hardware
  • Flyscreen: 304 Steel Mesh
  • Glass: 5 + 6A + 5 double glass / 6mm single glass
  • Surface Treatment: Anodizing, Powder Coating, Wood Grain
  • Place of Origin: Foshan, China
  • Temper: 6063-T5
  • Length: Customized to customer requirements (program adoption provided)

PRODUCT Description

By rotating the handle of the window, driving the linkage hardware mechanism inside the window, and make the window in the locking, casement (handle horizontal), upward hanging (handle vertical upward) in different positions of the window. Does not affect the indoor space, usually used most of the time; can effectively solve the problem of anti-theft, through the window sash around the multi-point locking, to ensure that the sealing of doors and windows, heat preservation effect

*Integrated with fin suits brick veneer for easier installation.
*110mm*18mm and138mm*18mm timber reveal can be provided together with flashing.
*Waterproofing rubber between window outframe and wall structure.

Recommended size Glazing detail Frame dimension
H:110mm-138mm single Glazing:6mm Profile thickness:1.5mm
W:1800mm double Glazing:5+6A+5 Frame depth: 60mm/70/mm80mm

The use of standard aluminium alloy profiles with wall thickness between1.5mm, with a variety of colors and not easy to fade; the use of high-quality stainless steel mesh screens, durable and not easy to deform; the use of insulating glass, with good light transmittance and heat insulation;

1. Low-Emissivity (Low-E) glass/tempered glass/float glass/laminated glass/reflective glass/obscured glass/tinted glass.

2. Insulated Glass: Single/Double/Triple glass/Argon filled; Insulated spacer: 6/9/12mm.

3. Double-pane windows: 5mm+9A+5mm/5mm+9A+5mm/5mm+12A+5mm (6mm glass), (25A max).

4. Triple pane windows: 5mm+6A+5mm+6A+5mm.

5. Laminated: 4mm+0.38pvb+4mm/6mm+0.76pvb+6mm/1.52pvb, etc.

Name Pictures Glazing detail
Single Glazing 6mm/8mm/10mm/12mm
Double Glazing   5mm+9A+5mm

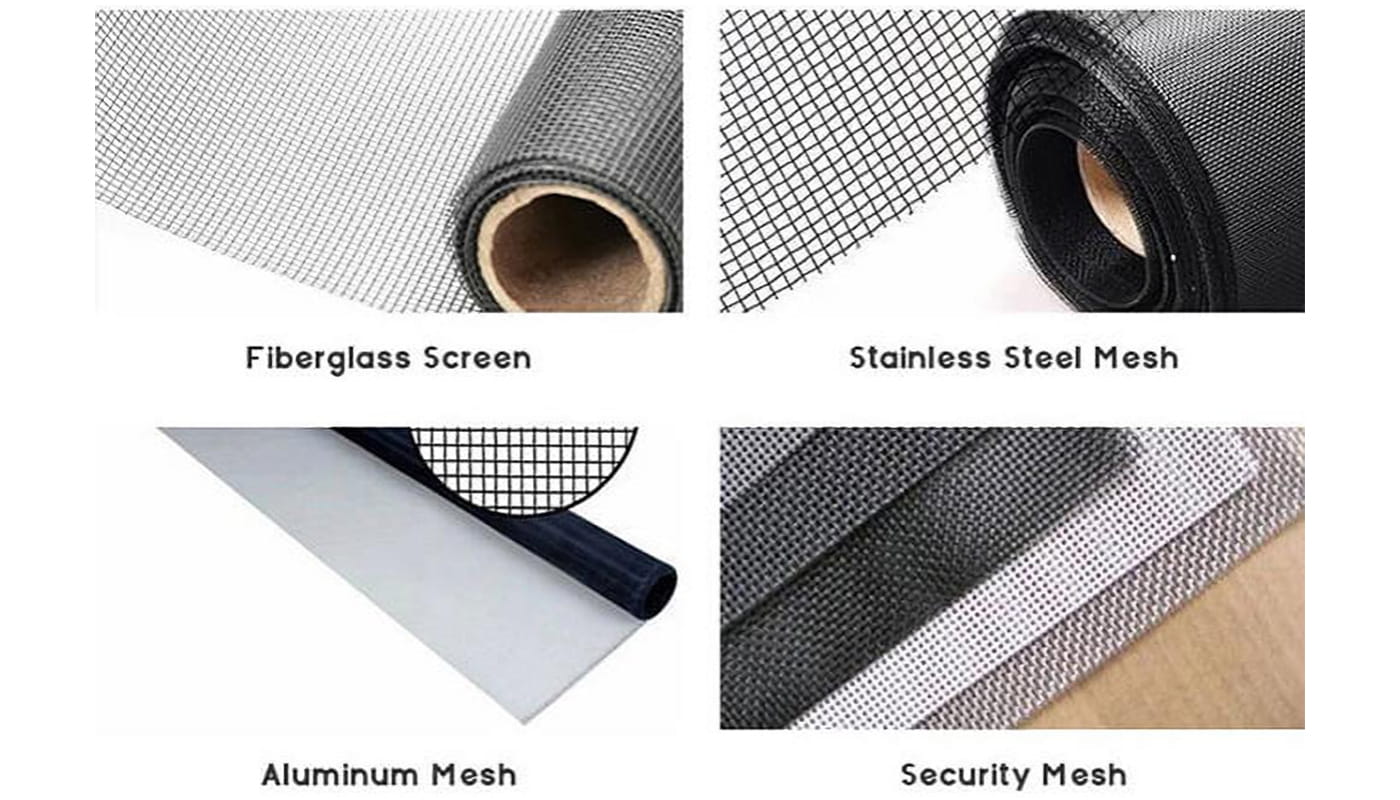

Fly Screen

1. 304 stainless steel anti-theft fly screen (>0.5mm).

2. 304 stainless steel folding fly screen (0.1-0.2mm).

Fly Screen

The color difference between the picture color card and the actual sample color card has the effect of color difference, please everything to the actual sample shall prevail!

Profiles are colored by brushing granular seasoning; powder coating, also known as electrostatic spraying, is based on the physical phenomenon of electrophoresis, so that atomized paint micro-particles in the high-voltage electric field with a negative charge, and under the action of the electrostatic field, the direction of being flowed to the surface of the positively charged profiles, to adhere to the formation of a solid film.
