Aluminium Extruded Profiles: Complete Guide to Design, Processing & Applications

Aluminium extruded profiles are the backbone of modern manufacturing — from architectural curtain walls to high-speed rail components, these shaped aluminium sections deliver strength-to-weight ratios that steel cannot match. At NA-VIEW, we extrude over 500 unique profiles every day across six production lines, achieving tolerances within ±0.5 mm. This guide draws on 11 years of hands-on extrusion experience to explain what aluminium extruded profiles are, how they are designed, and where they are used.

What Are Aluminium Extruded Profiles?

An aluminium extruded profile is a cross-sectional shape produced by forcing heated aluminium billets through a precisely machined die opening. Unlike rolled or cast aluminium products, extrusions can achieve complex hollow and semi-hollow geometries in a single pass — eliminating the need for welding, bolting, or multi-part assembly.

The process begins with an aluminium billet (typically 6063 or 6061 alloy) heated to 450–500°C. A hydraulic press pushes the softened metal through a steel die at pressures exceeding 100 MPa. Emerging from the die at roughly 500°C, the profile passes through a water or air quench system before being stretched, cut to length, and aged in an oven to reach its final T5 or T6 temper.

NA-VIEW operates six extrusion lines with press capacities ranging from 600 to 2,500 tons, enabling us to produce profiles from 10 mm to 300 mm in circumscribing circle diameter. Our typical daily output exceeds 500 unique die designs.

Key Design Principles for Aluminium Extruded Profiles

Wall Thickness Considerations

Uniform wall thickness is the single most important rule in aluminium extrusion design. When adjacent walls vary by more than 2:1 in thickness, uneven metal flow through the die causes distortion, warping, and dimensional inconsistency. We recommend a minimum wall thickness of 1.0 mm for small profiles and 2.0 mm for large architectural sections. Hollow profiles require slightly thicker walls — minimum 1.5 mm — to maintain die stability during extrusion.

Thinner walls reduce material cost and weight but increase extrusion pressure and die wear. Our engineers work with customers to balance material efficiency against manufacturability. For reference, a 0.2 mm wall thickness reduction on a profile running 10,000 metres per month saves roughly 120 kg of aluminium — a meaningful cost advantage over the product lifecycle.

Tolerances and Precision

Standard extrusion tolerances follow EN 755-9 (European) or ANSI H35.2 (American) specifications. For a typical profile with a 50 mm cross-section dimension, standard tolerance is ±0.30 mm. NA-VIEW maintains an internal standard of ±0.5 mm on all production runs, with precision-grade profiles achieving ±0.2 mm on critical dimensions. This level of control comes from die design expertise — our tooling department has produced over 3,000 dies, with an average die life of 25–30 tonnes of aluminium throughput.

For profiles destined for thermal break window systems or curtain wall applications where straightness and twist are critical, we apply additional stretch-straightening after extrusion and perform 100% dimensional inspection on first-article samples.

Surface Finish Requirements

The as-extruded surface finish — called mill finish — is suitable for many industrial applications. For architectural use, additional surface treatments are standard: anodising (AA10–AA25 grades), powder coating (60–120 μm thickness, Qualicoat certified), and PVDF coating for exterior exposure. Each surface treatment imposes its own constraints on the profile geometry — sharp corners must be rounded to R ≥ 0.5 mm for powder coating, and deep grooves must have adequate opening angles for coating penetration.

Our surface treatment guide covers the full range of finishing options and their suitability for different environments.

Common Aluminium Alloys for Extrusion

For a detailed technical comparison between 6063 and 6061 alloys, see our 6063 vs 6061 aluminium alloy comparison.

Applications Across Industries

Architectural and Construction

Aluminium extruded profiles dominate modern building envelopes. Curtain wall mullions and transoms, window and door frames, railing systems, and sunshade louvers all rely on custom extrusions. NA-VIEW supplies profiles for projects in over 30 countries, meeting EN, AAMA, and AS/NZS standards. Our architectural product range includes thermal break profiles for energy-efficient windows and unitised curtain wall systems for high-rise construction.

Industrial and Machinery

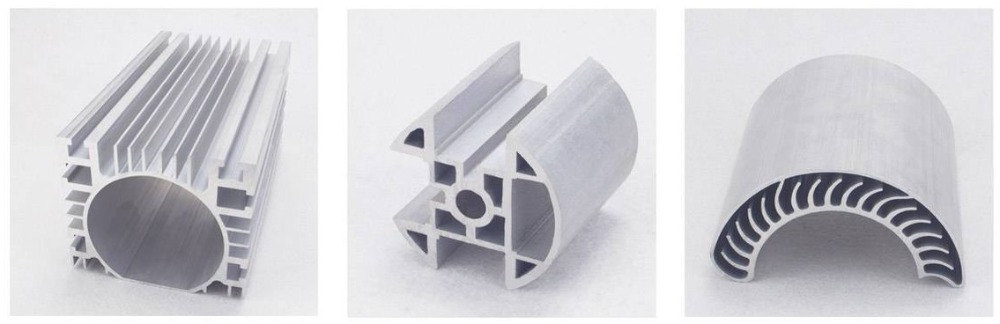

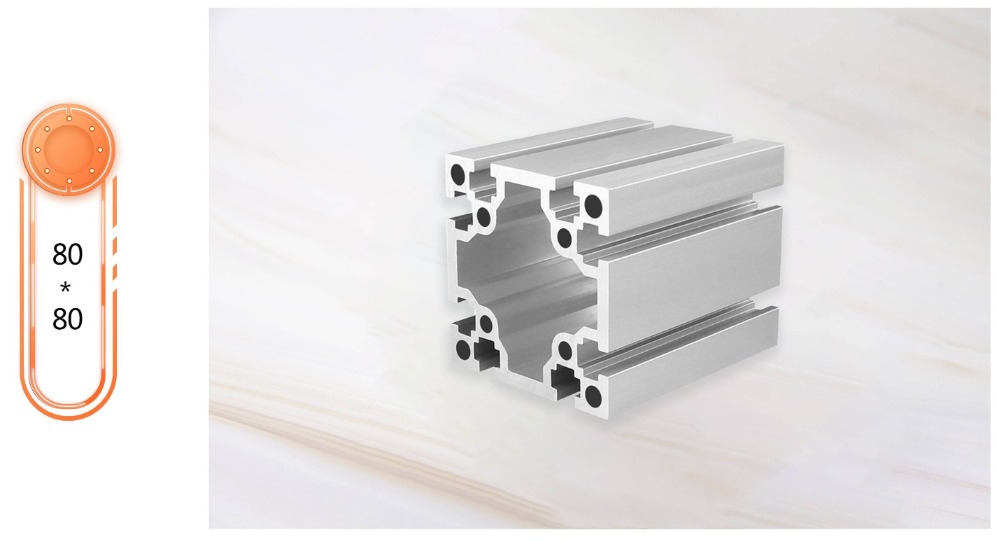

T-slot framing systems — the “Lego of manufacturing” — are built entirely from aluminium extrusions. Beyond framing, industrial profiles serve as conveyor rails, machine guards, pneumatic cylinder mounts, and electrical enclosure channels. The precision and repeatability of extruded profiles make them ideal for automated production lines where components must fit together consistently across thousands of units.

For more on industrial applications, read our guide to industrial aluminium profiles selection.

Transportation and Automotive

Lightweighting is the dominant trend in automotive and rail design, and aluminium extrusions are the primary material solution. EV battery trays, crash management systems, roof rails, and bus body frames all use custom aluminium profiles. The ability to create multi-hollow sections with integrated mounting features reduces part count and assembly time dramatically.

How to Order Custom Aluminium Extrusions from NA-VIEW

Every custom extrusion project at NA-VIEW follows a structured workflow designed to eliminate surprises:

1. Design Review (7 working days): Submit your profile drawing (DXF, DWG, or STEP format). Our engineers review for manufacturability, suggest die design optimisations, and provide a feasibility report.
2. Die Fabrication (15–20 working days): We manufacture the extrusion die in our in-house tooling workshop. Die trials are conducted before production approval.
3. Sample Production (3 working days): Three free samples are produced for your dimensional and surface quality approval.
4. Mass Production (25–35 working days): Full production with inline quality inspection, dimensional checks every 2 hours, and mechanical property testing per batch.
5. Surface Treatment & Packing: Anodising, powder coating, or PVDF as specified. Profiles are packed with protective interleaving and exported in seaworthy containers.

Our minimum order quantity starts at 500 kg per die design for standard profiles. We accept payment by T/T (30% deposit, 70% against B/L copy), L/C at sight, and PayPal for sample orders. Shipping terms include FOB Shenzhen, CIF, and DDP to major ports worldwide.
